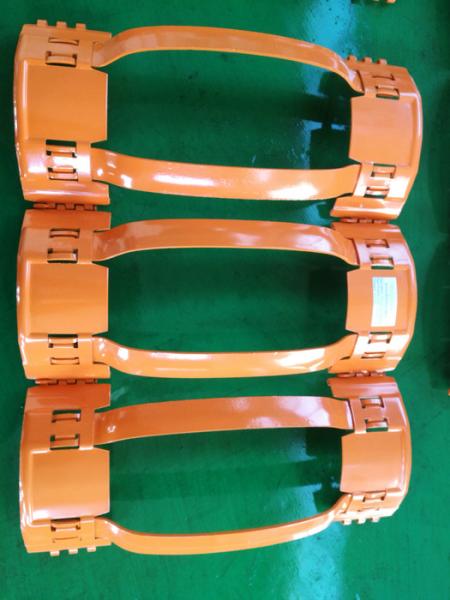

Industry Bow Spring Centralizer With Heat Treatment Forming

used to center the screen within the borehole

sufficient strength and surface area to provide support
conflicting requiremen

Centralizers( Centralizers for pipes ) are used to center the screen within the borehole. They should be of sufficient strength and surface area to provide support, yet not impede the installation of gravel. These are conflicting requirements, and some compromise is required. A simple guide, which has proven effective, is manufactured from 5/16 x 2 inch steel, 30 inches long, bent to provide the proper centering distance. This distance or bend is usually the theoretical borehole radius minus one inch. The guides are attached to the screen by welding. Three or four guides are placed equidistantly around the screen at 40 foot intervals .

Bow Spring Centralizer Description

High quality centralizers are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over.
Spec and performance index of bow spring casing centralizer meet API Spec 10D.

The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

Shandong Unitools Machinery Co., Ltd. specializes in oilfield drilling and completion tools research and development, production and sales. We always insist to the "Integrity, Innovation,Refinement " for enterprise purposes, to "technology, service" for the founding of the team spirit. The company has 36 employees, and has 6 senior engineers and 3 professional technical qualification engineers. The company in line with customer satisfaction as the basic principle: " Scientific Management, Technique Innovation, Quality First ,Customer Satisfaction ", and constantly strengthen the overall competitiveness of enterprises, the company in the competition for development, in the challenge of seeking opportunities, I believe that our company will provide you with the best quality products and service to create brilliance.

1) Bow springs produced from high quality spring steel and heat treated to provides strong restoring forces .

2) Integral hinges designed for max load capacity for optimum design strength .

3) Single bos spring type and double bow spring type are available .

4) Size are available for all standard casing/hole ,also can customized to meet customer requirements .

5) meet API 10 specification

Shandong Unitools Machinery Co., Ltd. is a wholly-owned subsidiary established in October 2017 by UNIBROM located in Weifang Economic development Zone, covering 30 acres, the north of the Ji-Qing high-speed and East of Qingdao port ,convenient transportation and strategic location .

Shandong Unitools Machinery Co., Ltd. specializes in oilfield drilling and completion tools research and development, production and sales. We always insist to the "Integrity, Innovation,Refinement " for enterprise purposes, to "technology, service" for the founding of the team spirit.The company has 20 employees, and has 6 senior engineers and 3 professional technical qualification engineers. The company in line with customer satisfaction as the basic principle: " Scientific Management, Technique Innovation, Quality First ,Customer Satisfaction ", and constantly strengthen the overall competitiveness of enterprises, the company in the competition for development, in the challenge of seeking opportunities, I believe that our company will provide you with the best quality products and service to create brilliance.
